Is your graphic closed? Also, if there are any duplicate lines or broken lines, please delete them.
0
回复
The RDC6555G controller produces erratic cutting paths during operation
I am using an RDC6555G controller with LSworks software on my cutting machine. I am getting abnormal lines during cutting. Any ideas on how to fix this? Thanks!
你能回答这个问题吗？
请写下你的答案，帮助遇到同样问题的用户。
回答（2）
You may refer to this analysis, and I hope it proves helpful.
Cause Analysis:

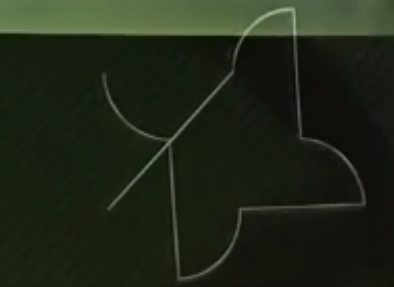

The image below shows regular deformation in cut circles. The possible causes are as follows:
① Errors in the machining data itself
② Incorrect parameter settings
③ Drive/motor abnormalities
Step-by-Step Troubleshooting:
Use the software's simulation or processing preview function to check whether the graphic itself has any abnormalities.
Check the manufacturer parameters and user parameters for any issues.
Inspect the drive circuit connections and perform drive/motor movement tests (try jogging, frame tracing, etc.).
Findings:
Upon reviewing the user parameters, it was found that User Parameters → Machining → X/Y-axis backlash compensation was set excessively high. After resetting it to zero and reprocessing, the circular cuts returned to normal.Summary:
