Origin readings Y-390 and X-279
I have a Fox Alien Vasto CNC. The machine homes to the bottom left corner and in light burn it puts the laser in Y -390 and X -279. I have no problem burning or cutting projects because I align my projects with the laser off of the work area and it runs fine. But I have added a camera to help me align projects and when I try and align the camera it puts the graphics to burn to help align the camera in side the work area and when I run the program it sends the machine right into the limit switch’s. Can you adjust the work area to where the machine homes?
Что вы думаете об этой публикации? Поделитесь своим мнением в комментариях.

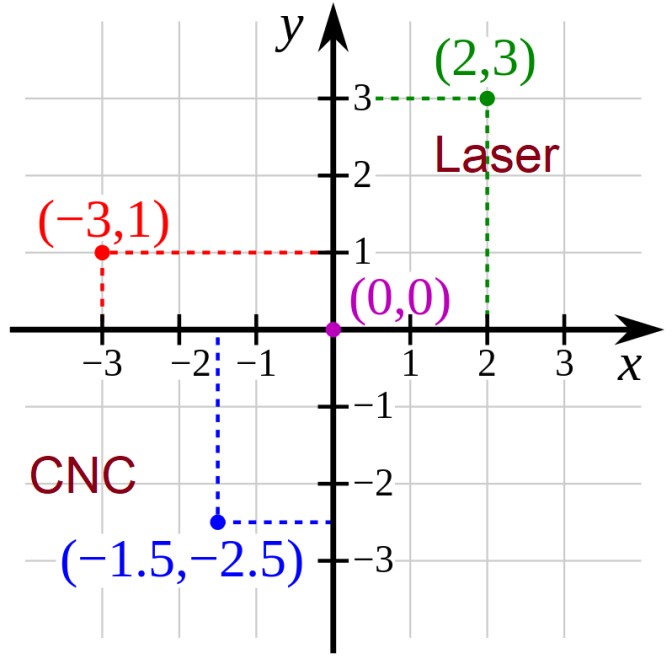

Enter G10 L2 P1 X-279 Y-390 in the Console window. This should tell your machine to operate in the first quadrant, which is where Lightburn is happy.
Thank you for your help. I’m a little new to this so bare with me, when you say console window you mean in light burn where you type commands?
That is correct.
Try enabling CNC mode
thank you for replying. I turned on cnc and it put the origin just the opposite in the positive. If I change the origin between top right and bottom left the laser position does just the opposite.
