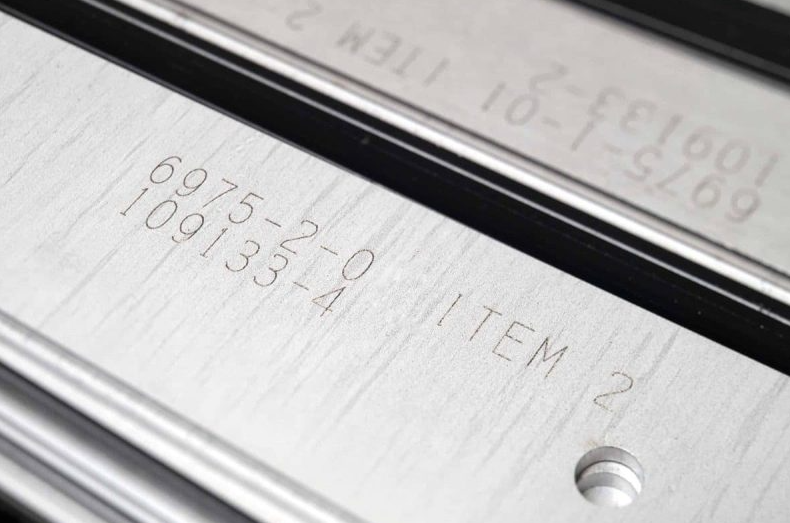

Technology for laser marking of curved and irregular surfaces
In the field of industrial laser marking, various technical solutions have been developed to address various challenges. These solutions cover a wide range, from relatively simple mechanical modifications to standard systems, to complex multi axis optomechanical platforms with real-time adaptive control. The selection of appropriate technical solutions needs to be determined based on specific applications, mainly considering factors such as the complexity of the workpiece surface, the quality and resolution of the required markings, production throughput, and available capital investment.

Dynamic Focusing Systems
Dynamic focusing is the most direct technical response to the defocusing problem on curved surfaces. In a dynamic focusing system, the collimated laser beam passes through a motorized focusing element — typically a movable lens or a variable-focal-length (zoom) beam expander — before entering the galvanometric scanning head. By synchronizing the position of this focusing element with the scan pattern, the system continuously adjusts the focal distance of the beam in real time as it traverses the marking field, maintaining the beam in focus on the surface even as the surface-to-lens distance varies.
The key parameter governing the performance of a dynamic focusing system is the speed and range of the focusing element’s travel. For surfaces with gradual, predictable curvature — such as the outside of a cylinder or a sphere — the required focus adjustment at any given scan position can be calculated from the known geometry of the surface and programmed into the scan controller as a deterministic focus correction profile. For surfaces with more complex or less predictable geometry, the focus correction profile must be derived from a three-dimensional surface model or from real-time surface sensing data.
Dynamic focusing systems extend the effective depth of focus of a laser marking system dramatically — from the few millimeters available with a fixed-focus flat-field lens to several centimeters or more, depending on the travel range of the focusing element. This makes them suitable for a wide range of curved-surface applications without requiring changes to the workpiece fixturing or the scanning geometry. However, dynamic focusing does not address the geometric distortion problem: it corrects the focus but not the scan pattern geometry, so marks on highly curved surfaces may still exhibit some degree of distortion without additional correction algorithms.
Rotational Marking Systems
Rotational marking is a technique specifically suited to cylindrical and conical workpieces — components such as shafts, pipes, bearings, rollers, bottles, and capsules that have a well-defined axis of rotational symmetry. In a rotational marking setup, the workpiece is mounted on a motorized rotary axis (sometimes called a rotary fixture or chuck) that rotates the part beneath the laser marking head. The laser marks a narrow axial stripe on the surface as the part rotates, and by coordinating the rotation speed of the part with the scan speed and step-over of the laser, the system effectively “unrolls” the cylindrical surface into a flat strip that the laser can mark without defocusing.
Because the laser always marks at the same radial distance from the rotation axis, and that point is always at the top of the cylinder directly below the scanner, the surface-to-lens distance remains constant throughout the marking process. This eliminates both the defocusing problem and the geometric distortion problem for cylindrical surfaces in a single, mechanically elegant solution. Rotational marking systems can achieve the same mark quality on cylindrical surfaces as flat-bed systems achieve on flat surfaces, making them the preferred solution for high-volume cylindrical component marking in the automotive, bearing, and packaging industries.
The limitation of rotational marking is that it requires the workpiece to be symmetric about a rotational axis, which precludes its use on freeform or prismatic surfaces. It also requires a dedicated rotary axis fixture, which adds to the system cost and complexity and may impose constraints on part size and weight.
Three-Dimensional Laser Marking Systems
Three-dimensional laser marking systems — often referred to as 3D laser markers — represent the most technologically advanced and versatile solution for marking curved and irregular surfaces. A 3D laser marking system integrates dynamic focusing with a three-dimensional scan field model and a geometric correction engine to deliver focused, geometrically accurate marks on surfaces of arbitrary shape within the system’s working volume.
The core of a 3D laser marking system is a three-axis scanning head that combines the two angular axes of a standard galvanometric scanner with a dynamic focus axis providing the third (Z) degree of freedom. The system’s control software maintains a three-dimensional model of the surface being marked — derived either from CAD data, from a surface scan using structured light or laser triangulation, or from programmed geometric primitives such as cylinders, spheres, and cones — and uses this model to calculate, for each point in the scan pattern, the correct focus position and the geometric correction required to ensure that the mark appears undistorted on the actual three-dimensional surface.
The result is a system that can mark text, graphics, barcodes, and complex patterns on curved, conical, spherical, and freeform surfaces with the same quality and resolution that a flat-bed system achieves on flat surfaces. The mark appears correctly proportioned and legible when viewed on the actual three-dimensional surface, and the engraving depth or annealing effect is consistent across the entire mark area regardless of surface curvature. Three-dimensional laser marking systems are more expensive than standard flat-bed or dynamic-focus systems, and they require more sophisticated programming and setup. However, for applications requiring high mark quality on complex geometries — medical implants, aerospace components, luxury consumer products, and precision engineering parts — they deliver results that are simply not achievable with simpler technology.
Adaptive Laser Marking with Surface Sensing
Adaptive laser marking is an emerging approach that addresses the limitations of pre-programmed 3D systems by incorporating real-time surface sensing into the marking process. In an adaptive system, one or more sensors — typically laser triangulation profilometers or structured light scanners — measure the actual surface geometry of the workpiece immediately before or during marking. The measured surface data is processed in real time by the marking controller, which adapts the scan pattern, focus correction, and geometric compensation to match the actual measured surface rather than a pre-programmed nominal model.
This approach is particularly valuable in applications where part-to-part geometric variation is significant — for example, cast or forged components where dimensional tolerances are relatively loose, or flexible or deformable parts whose shape may vary between fixturing events. By measuring the actual surface of each part before marking it, adaptive systems can maintain consistent mark quality even in the presence of dimensional variation that would cause systematic quality degradation in a pre-programmed 3D system.
Adaptive laser marking systems represent the current frontier of curved-surface marking technology and are still primarily found in high-value, low-to-medium volume applications where the cost of the sensing and adaptive control infrastructure is justified by the criticality of the marking quality requirement. As sensor costs continue to decline and processing power increases, adaptive marking is expected to become more accessible to mainstream manufacturing applications.
For laser marking on curved and irregular surfaces, the industrial sector has developed four main technical solutions: dynamic focusing, rotational marking, 3D laser marking, and surface-aware adaptive marking. Dynamic focusing adjusts the focal length in real time using an electric focusing element, effectively extending the system’s depth of focus and suitable for moderately complex curved surfaces, but it cannot completely eliminate geometric distortion. Rotational marking uses a rotating axis to move cylindrical workpieces, “unfolding” the curved surface into an equivalent plane, structurally solving both defocusing and distortion problems, but it is only suitable for parts with rotational symmetry. 3D Laser Marking Systems further integrate three-axis scanning and 3D model calculation capabilities, enabling precise focal length and path correction for any curved surface based on CAD or scanned data, achieving the highest accuracy and widest applicability, but with higher cost and system complexity. Adaptive Laser Marking represents the cutting edge, acquiring actual workpiece surface data in real time using sensors and dynamically adjusting marking parameters, addressing incoming material errors and deformation issues, and is particularly suitable for high-value, small-to-medium batch applications. Overall, these four technologies have evolved step by step from “mechanical compensation → structural reconstruction → digital modeling → real-time perception” to form a complete solution path system for current curved surface laser marking technology.
